Milling machine

Kunzmann UF6/3

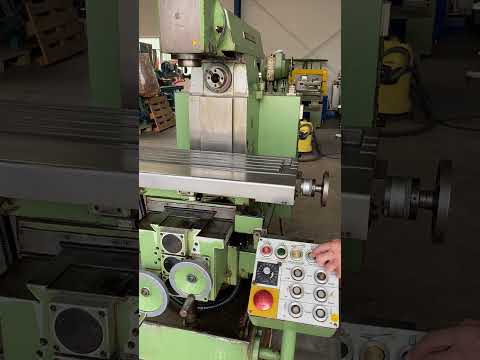

Universal milling machine Kunzmann UF6/3
Year of manufacture: 1983
The machine is in good condition, and the spindle runs very smoothly.
The feed motor has been fitted with new carbon brushes, and the Z-axis spindle has a new telescopic spring.
The cam control system in 3 axes is perfect for the production of small series.
--- Price net plus VAT (shown on invoice) ---

Travel distances, feed/manual
- Longitudinal: 450/460mm
- Transverse: 190/200mm
- Vertical: 400/410mm
The milling head can be adjusted by approximately 100mm by hand, which increases the transverse working area.
Table clamping surface (surface with 3 T-slots): 860 x 265 mm
T-slots: 14mm
Spindle speeds, horizontal: 30-1280 RPM
Spindle speeds, vertical: 50 - 2150 RPM
Feeds: 0-1000 mm/min, stepless
Feed, vertical: 0-250mm/min
Rapid traverse: 1000 mm/min
Vertical milling head with fixed quill
Tool holder: SK40 (Ott system)
Distance, table - spindle lower edge: 440mm

Accessories:
- Manual
- Counter support for horizontal milling
- Cam control system in 3 axes (adjustable cams for switching off the feed)
- Chip tray

Dcedozmfz Dopfx Ahyep
Drive power: 2.6/3.2 kW
Connection: 400V three-phase
Space requirement: approx. 1250 x 1200 x 1800 mm
Weight: approx. 1300 kg

Shipping by freight forwarder on request.
